Introduction

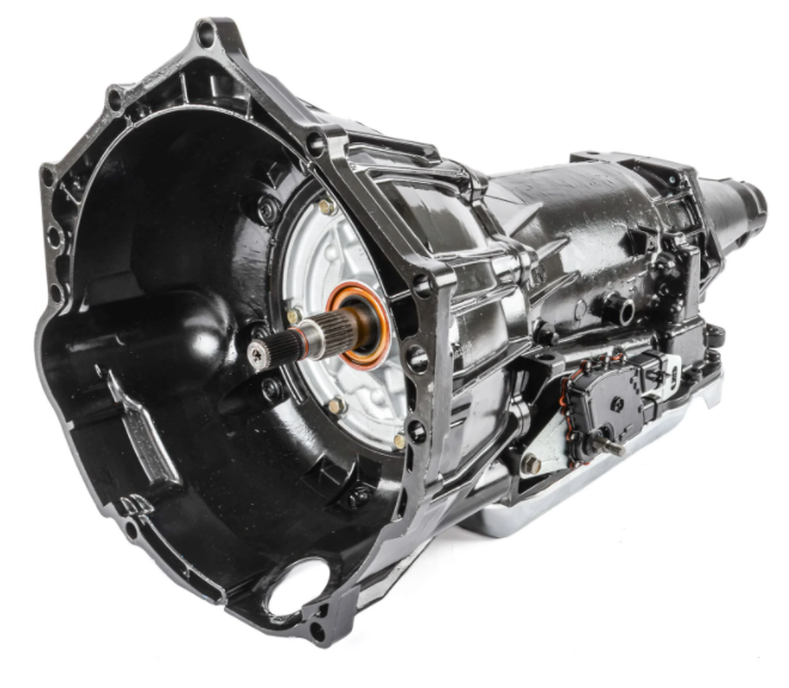

Launched in 1993, the GM 4L60E succeeded the legendary TH350 and ushered in a new generation of automatic transmissions. As GM’s first electronically controlled overdrive transmission, it delivered greater refinement, adaptability, and control.
History of the 4L60E
The 4L60 transmission was in production for over 25 years and it has gone through a number of different iterations and name changes in that time. In 1982, GM came out with the 700R4 transmission. A longitudinal 4-speed automatic overdrive transmission which later got renamed to be the 4L60 in 1990.
In 1993, the 4L60 had the E added to it to become 4L60E, which indicated the use of electronic shift controls in the transmission. Then in 1995 GM added a Pulse-Width-Modulation (PWM) torque converter clutch solenoid for smoother engagement.
There are an early and late model 4L60E transmissions. The later models introduced from 1996 have a removable bell housing which isn’t interchangeable with the early models. From 1998 onwards, all models of the 4L60E produced were late models. The advantage of the removable bell housing is that multiple engine bell housing patterns can be adapted to the same transmission case.
In 2001 the 4L65E was released as an upgrade. It looked just like the 4L60E on the outside but had stronger internal parts including a five-pinion planetary carrier, along with a better torque converter and input shaft. GM later introduced the stronger 4L70E in 2006 which was just like the 4L65, but had an input shaft speed sensor located in the pump and eventually they added a more reliable internal mode switch (IMS). The 4L60E and 4L65E were both very successful transmissions and were featured in GM vehicles until 2013, before getting phased out to make way for newer 6-speed automatic transmissions.
Specifications of the 4L60E
| Manufacturer | General Motors |
| Type | 4 Speed Longitudinal Automatic |
| Predecessor | TH350 |
| Length | 21.9" |
| Input Shaft | 298 mm |
| Overdrive | Yes |
| Case Material | Die Cast Aluminum |
| Weight | 146 pounds dry |
| Fluid Capacity | 8.8 to 11.4 quarts |
| Max Input Torque | 4L60E: 350 lb-ft 4L65E: 380 lb-ft 4L70E: 400 lb-ft |
| Max GVWR | 8,600 lbs |
| Max GCWR | 15,500 lbs |
| RPO Code | 4L60E: M30 4L65E: M32 4L70E: M70 |
Gear Ratios
| 1st | 2nd | 3rd | 4th | R |
| 3.06:1 | 1.62:1 | 1.00:1 | 0.70:1 | 2.29:1 |
The 4L60E provides a wide range of gear ratios. The high 1st gear ratio is ideal for pulling off quickly under acceleration and is especially good off-road or when carrying/pulling a heavy load. The 4th gear, also known as the overdrive gear, allows lower RPMs to be achieved at cruising speeds as well as a potentially higher overall top speed.
Strengths
The 4L60E is a highly capable automatic transmission, designed to manage substantial power and torque in a wide range of applications. It is suitable for vehicles up to 8,600 lbs gross vehicle weight and is rated to handle up to 360 ft-lb (480 Nm) of torque in factory form. This versatility makes it well suited to trucks, SUVs, Jeeps, and even muscle cars where strength and reliability are essential.
One of the standout advantages of the 4L60E is its efficiency. With relatively low gear ratios and a dedicated overdrive gear, it helps reduce engine RPM at cruising speeds, improving fuel economy and minimizing long-term engine wear. The inclusion of a lock-up torque converter further enhances efficiency by mechanically linking the engine to the transmission at highway speeds. When the Torque Converter Clutch (TCC) engages, input shaft speed matches engine speed, eliminating converter slip and reducing wasted energy during steady-state driving.
Hydraulic efficiency was also improved over earlier GM designs. Previous generations used a fixed-displacement gerotor pump that maintained pressure by bleeding off excess fluid—an inherently less efficient approach. The 4L60E introduced a variable-displacement vane pump, which supplies only the volume of fluid required to achieve the necessary pressure and flow. This design is significantly more efficient, particularly at the lower pressures associated with cruising, and contributes to improved overall vehicle fuel economy.
Late-model 4L60E units feature a Pulse Width Modulation (PWM) torque converter clutch solenoid, enabling smooth and progressive engagement and release of the TCC. Combined with an electronically controlled valve body using solenoids and actuators, the 4L60E is highly adaptable to modern electronic control strategies. This makes it especially responsive and tunable when paired with a contemporary transmission controller such as the COMPUSHIFT, allowing precise control over shift timing, firmness, and converter lock-up behavior.
Interchangeability is another major strength of the 4L60E platform. It is compatible with Chevrolet small block and big block V6 and V8 engines, as well as inline-six configurations, making it a popular choice for swaps and performance builds. When properly built and maintained, a strengthened 4L60E can support significantly higher outputs, with performance versions capable of handling up to 700 horsepower in the right application.
Common problems
While the 4L60E is known to be quite a reliable transmission. There are a few problems that often show up over time. They are:
Failure of the 3-4 clutch pack. This specific clutch pack is known to have problems where the clutches burn due to slippage from oil leaking into the clutch pack. This clutch pack failure leads to slippage in 3rd gear.
Broken drive shell / sunshell. The sunshell is susceptible to break on the 4L60E. It is a common weak point that results in no 2nd, 4th and reverse gear. This sunshell in the 4L60E is often swapped out for a stronger aftermarket one if problems arise.
A worn Torque Converter Clutch (TCC) regulator valve. A worn TCC regulator valve causes an oil leak and this prevents the TCC from engaging, leading to slippage. When this happens, the engine RPM will rise much faster than the increase in the vehicle’s speed.
On the customer end, using the wrong TCC in the transmission or badly programming the COMPUSHIFT can lead to burning up the torque converter or erratic shifting.
Popular Vehicles that use the 4L60E
The 4L60E was one of the most widely used automatic transmissions of its time, appearing across a broad range of vehicles and even in models produced by overseas manufacturers.
Developed by General Motors, it was extensively fitted to GM vehicles and brands such as Chevrolet, Cadillac, and Buick.
The 4L60E can be found in everything from large SUVs like the Chevrolet Suburban, to performance cars such as the Corvette, and sedans including the Australian-built Holden Commodore.
A 2007 Chevrolet Suburban
A 2001 Chevrolet Corvette Z06
A Holden VR Commodore from Australia
The 4L60E can also work well in Jeeps too and is good for 4x4 applications due to its ability to handle high input torque. However, it might not be very suitable for vehicles with a short wheelbase as the 4L60E is a bit long lengthwise.
When using the transmission in a 4x4 vehicle, the transfer case has to have a speed sensor to work with the COMPUSHIFT. If the transfer case doesn’t have a speed sensor, there are aftermarket kits to add an output speed sensor.
4L60E Transmission Control using the COMPUSHIFT
The 4L60E can come with either the 13-pin or 15-pin case plug. At the moment, not many transmissions are still currently using the 13-pin case plug, and it’s recommended that you upgrade to the 4L60 with the 15-pin case plug. There’s a 17-pin case plug as well but it’s only used with the 4L70E which has the internal mode switch.
Depending on the case plug you have, you will need to get the appropriate wiring harness for your transmission. In case you’re wondering, the COMPUSHIFT 4L80’s harness and 4L60’s harness are interchangeable.
Once you’ve got the right wiring harness, the COMPUSHIFT transmission controller can be programmed via Bluetooth using a smartphone to control shift speeds, shift quality and the torque converter clutch.
The controller needs to be connected to the TOSS, otherwise it won’t shift due to safety concerns.
Note that the Torque Converter Clutch engagement strategy is different on a diesel and petrol engine. There are presets already included for gasoline and diesel engines, and within the diesel category, you have two broad categories: low-speed diesels and high-speed diesels.
On a diesel engine, the TCC engagement strategy is different as it is tuned to get the engagement done sooner. Diesels have a peakier torque curve and you want to be able to increase throttle without the torque converter unlocking immediately.
On a gasoline engine which has a relatively flatter torque band, you can unlock the TCC to multiply torque.
