Aisin AS69RC, Deep PML Transmission Pan

Volume: 3 to 4 quarts over stock

Dimensions: Click below for dimensions

Number of Bolts: 20 (Note that the older AS68RC transmission uses 18 bolts)

Benefits:

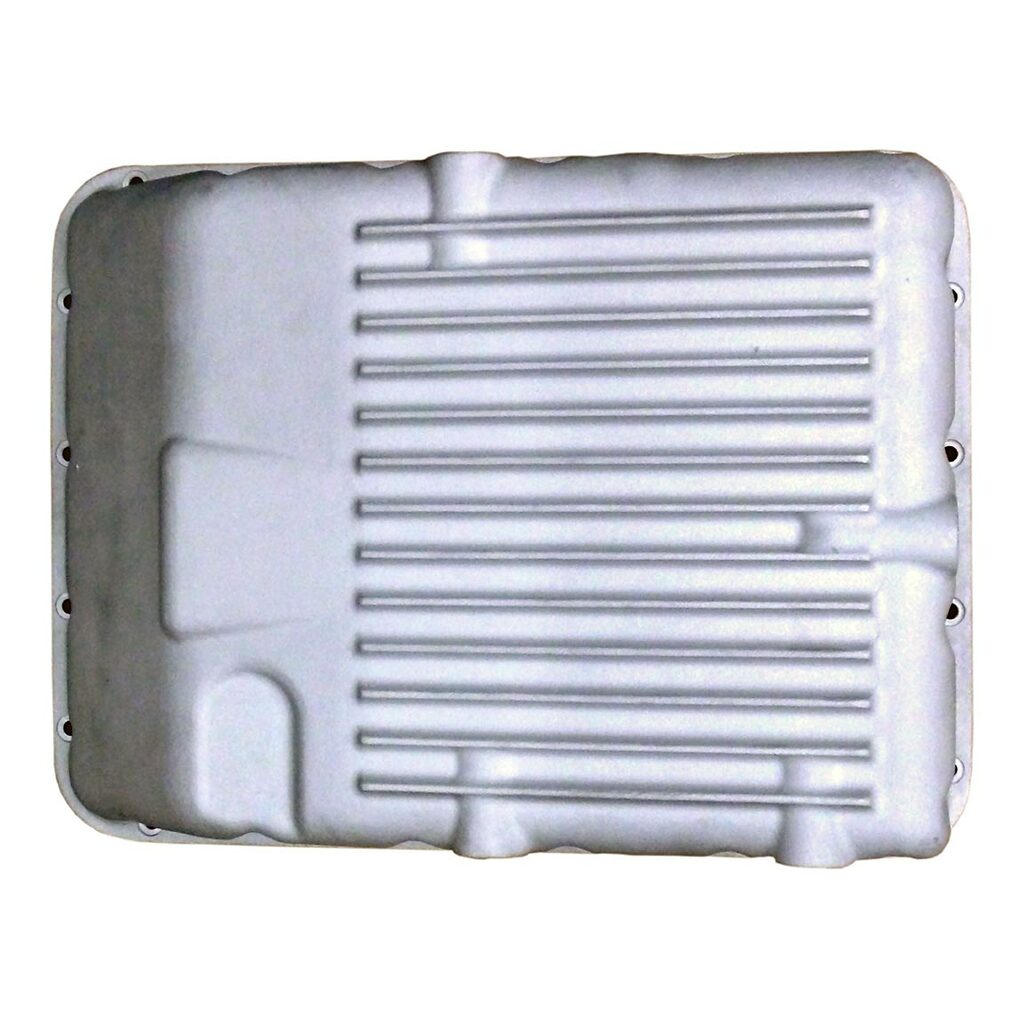

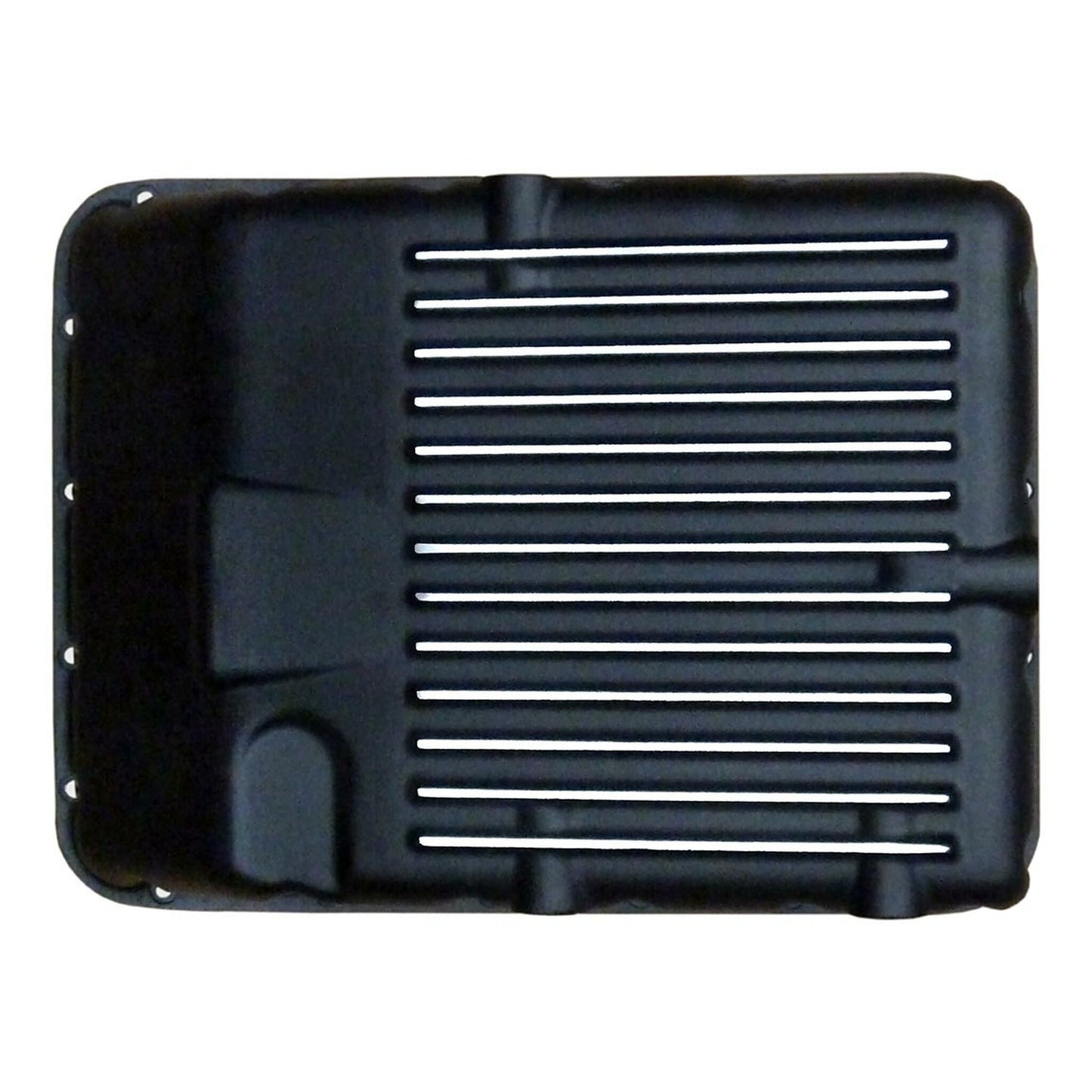

This PML pan features heavy duty construction, extra capacity, drain, and cooling fins.

PML designed this pan to provide as much clearance as possible to the bolts at the rear of the pan under a cross member. To access them on the stock pan or the PML pan, you will probably need to jack up the transfer case.

This pan works with the stock gasket and filter.

PML provides new mounting bolts and a magnetic drain plug with the pan.

Applications:

Ram Trucks Owners: The Aisin AS69RC transmission is found in 2013 and newer Ram 3500, 4500, 5500 trucks with the 6.7 Cummins Diesel.

Titan Owners: The 2016 and newer Nissan Titan XD diesel trucks have an Aisin A466ND transmission, which has the same stock pan and gasket and very similar filter. One Titan owner reported back on his installation of this pan: "The fit and install went perfect!"

Always check your truck to verify your configuration and clearance.

PML designed three locations that optionally can be drilled and tapped for a temperature sending unit:

• Front of pan
• Driver's side of pan toward the front of the pan
• Passenger's side of the pan, toward the rear of the pan

If you want PML to drill and tap the pan, there is a $45 machining charge per hole and we would need to know the size. We can machine between 1/8 NPT and 1/2 NPT. Default size is 1/8 NPT if you require a different size, please call to order.

Baffles

The inside of the PML pan is baffled to help direct the fluid flow toward the filter pick up.

PML Transmission Pan Features

• Increased oil capacity for cooler temperatures
• Sand-cast aluminum with raised fins
• 3/16-inch thick wall construction to add strength to the transmission case
• 3/8-inch thick gasket flange will not bend when bolts are tightened
• Machined gasket surface for a secure seal
• Boss cast into pan can be machined for a temperature sensor
• Drain hole and magnetic drain plug for easier, less messy maintenance
