Chrysler/Mercedes NAG1, 722.6, W5A580, WA580, W5A380, W5J400, Deep PML Transmission Pan

Regular price USD $365.00
Regular price USD Sale price USD $365.00
Sale Sold out
Share

Description

All orders include: transmission pan, mounting bolts, and magnetic drain plug. A PML gasket is included. The stock gasket will not fit this PML pan.

Volume: 2 to 2 1/2 quarts over stock

Dimensions: Click below for dimensions. Stock Pan is about 1.7 inches and this Deep Middle Pan is about 4 inches tall.


Number of Bolts: 6

Benefits

PML designed this 722.6/NAG1 transmission pans with these features:

  • Cooling — extra capacity on deep models, fins, and aluminum construction for reported temperature drops of 10 to 35 degrees
  • Clearance — deep middle to clear cross members on 2007 and newer models
  • Drain plug — on the side of the pan for safety
  • Secure seal — machined flat flange, no more retaining clips and formed gasket
  • Strength — high quality, thick walls

Applications for This PML Transmission Pan

PML designed our deep middle NAG1, 722.6 (W5A580, WA580, W5A380, W5J400) transmission pan for:

  • Sprinter Vans, 2500 and 3500 with the W5A380 transmission, 2002 to 2013
  • Sprinter Vans (Mercedes), 2500 and 3500, 3.0 diesel with 722.6, 2WD, 2010 to 2016
  • Some Jeep, Dodge, Chrysler, and Mercedes vehicles with 722.6/NAG1, depending on clearance available on vehicle

From about 2002 to 2013 Dodge, Mercedes and Freightliner all made Sprinter Vans with the W5A380 transmission. 2007 and newer models have cross members running across the rear and front of the stock pan. PML put a step in the front and rear of the pan to clear these frame cross members.

T1N Sprinters: 2002 to 2006 T1N Sprinters may not have cross members below the stock pan and may be able to use our stock capacity or deep pan.

NCV3 Sprinters: 2007 to 2013 NCV3 Sprinters usually have cross members below the stock pan and will need this pan with the steps in the front and back for clearance.

Sprinter with Winnebago: The Sprinter cab and chassis is used under many Winnebago models, such as View and Navion. This pan has been installed on several of these.

HWH Leveling System: We have had a customer report that with the hydraulic jack system by HWH for leveling there is still clearance for this PML pan. The leveling kit is toward the rear of the rear cross member and does not create any additional clearance issues. We had another customer report that the front leveler brace had to be modified to allow the pan to fit. Since configurations vary, check for clearance before ordering.

4WD Sprinters: The drive shaft may be too close to the pan. PML pans have thick walls. Jason tried to install this PML pan on his 2015 Mercedes 3500 Diesel Sprinter 4WD and the side of the pan hit the drive shaft.

Always check your vehicle before ordering to verify set up and clearance.

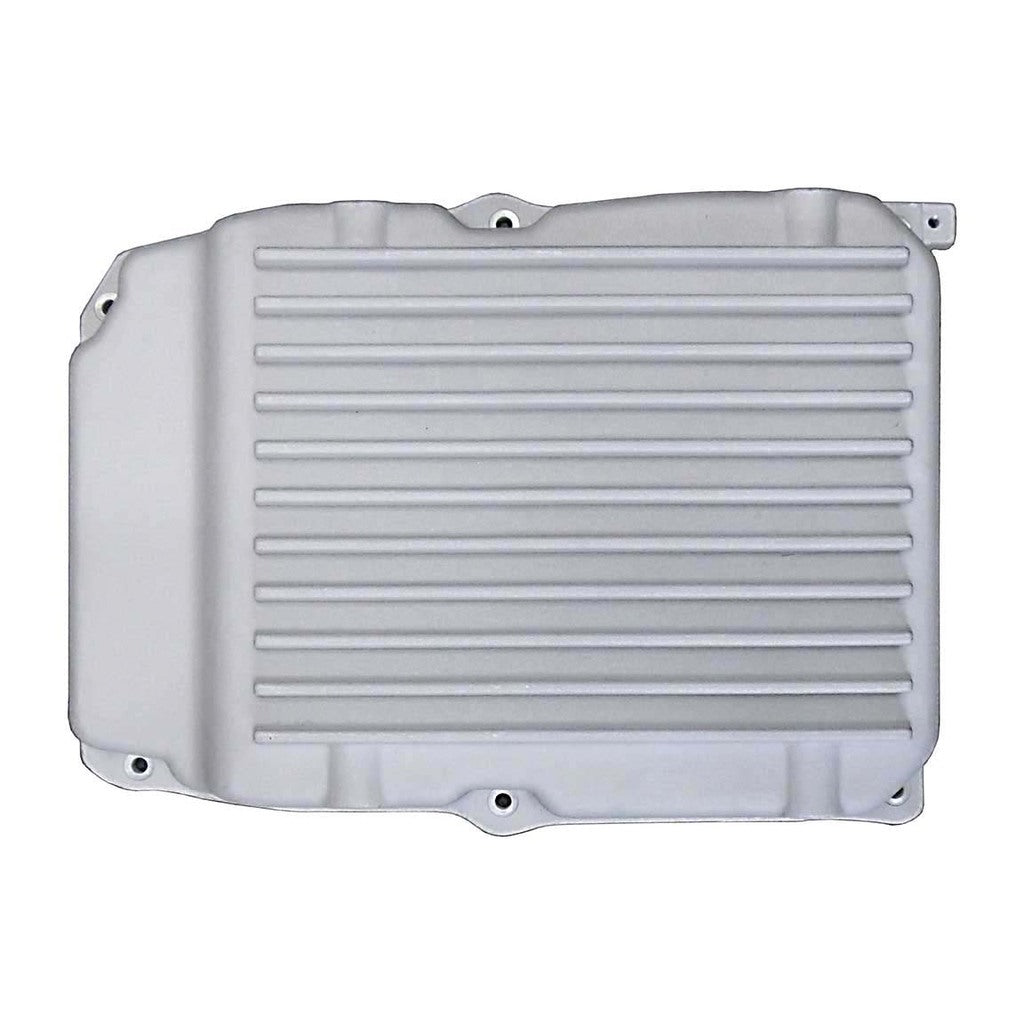

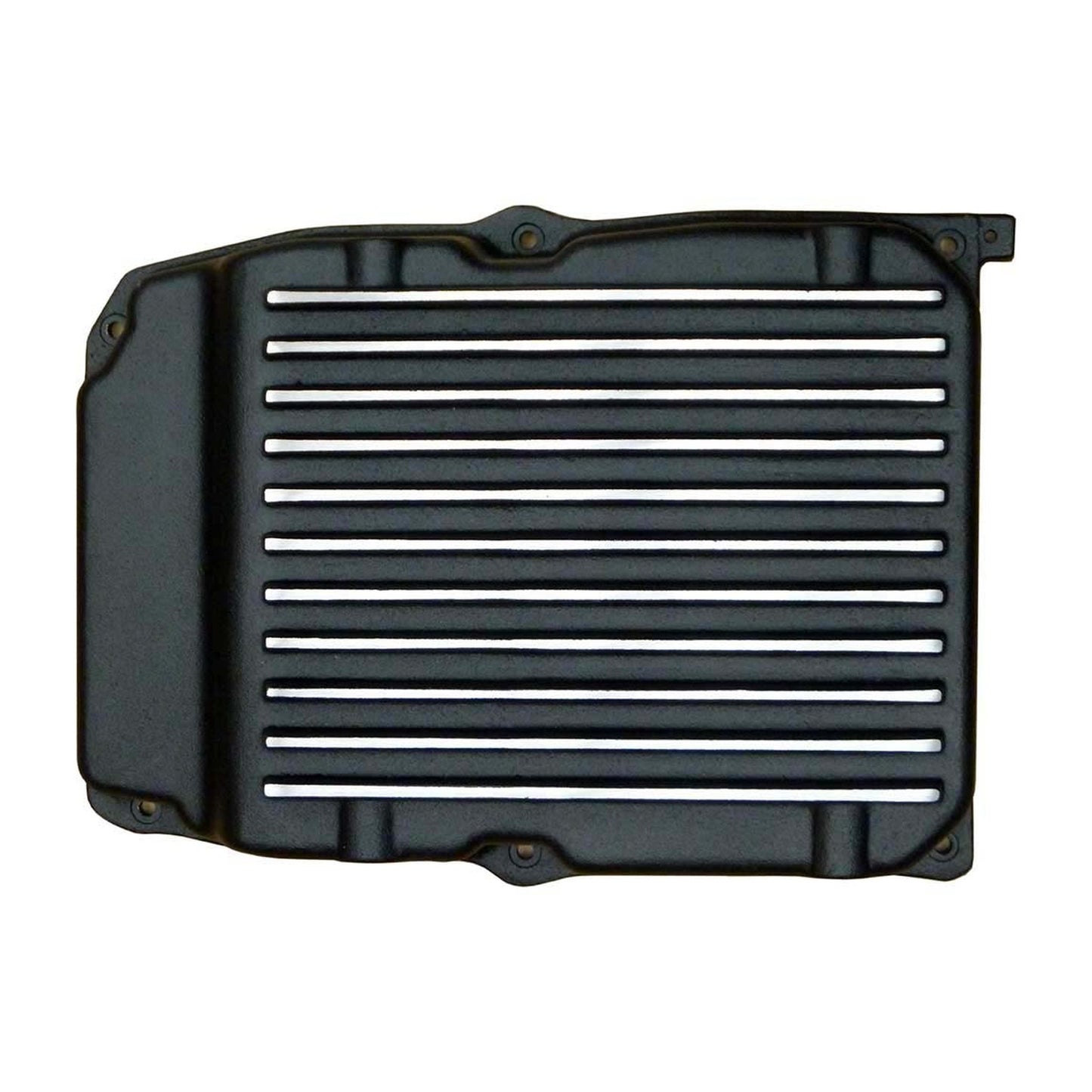

This pan is available in two finishes.

PML makes three pans for the NAG1/722.6 transmission. Need help figuring out which pan you need? Check out this video or see our NAG1/722.6 Transmission Guide for help.

Our thanks to the Sprinter community for their help with this pan design.

We think this pan will fit Mercedes G55 AMG Wagons but have not yet had an installation.

Gasket


A PML cork and rubber gasket is included (normally $18) for those who prefer a gasket over RTV.

PML's pan is not compatible with the stock gasket. PML's gasket is not compatible with the stock pan.

In this video, learn how this PML pan seals to the transmission housing:

Additional Info

SKU:PML-11117-CAST
