Description

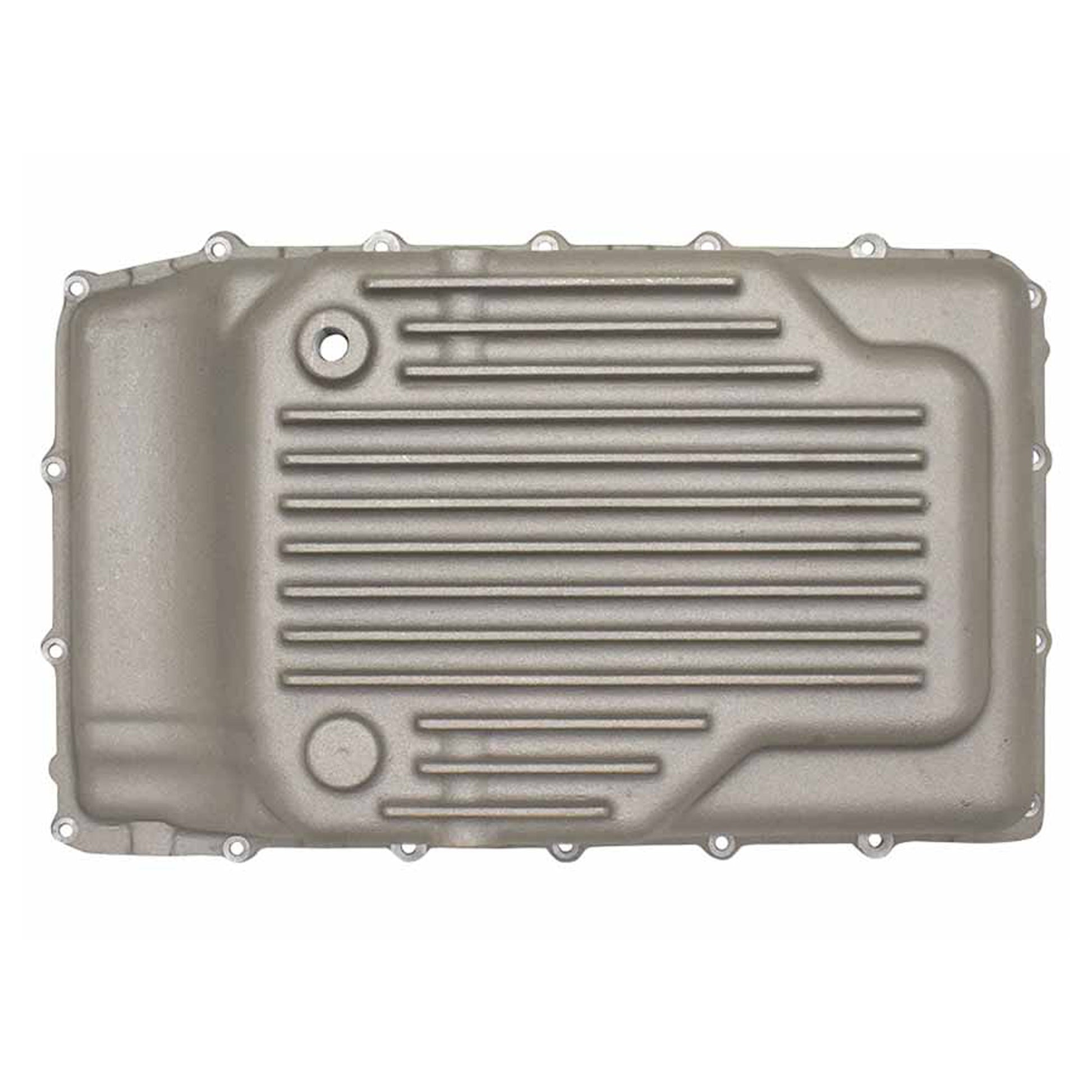

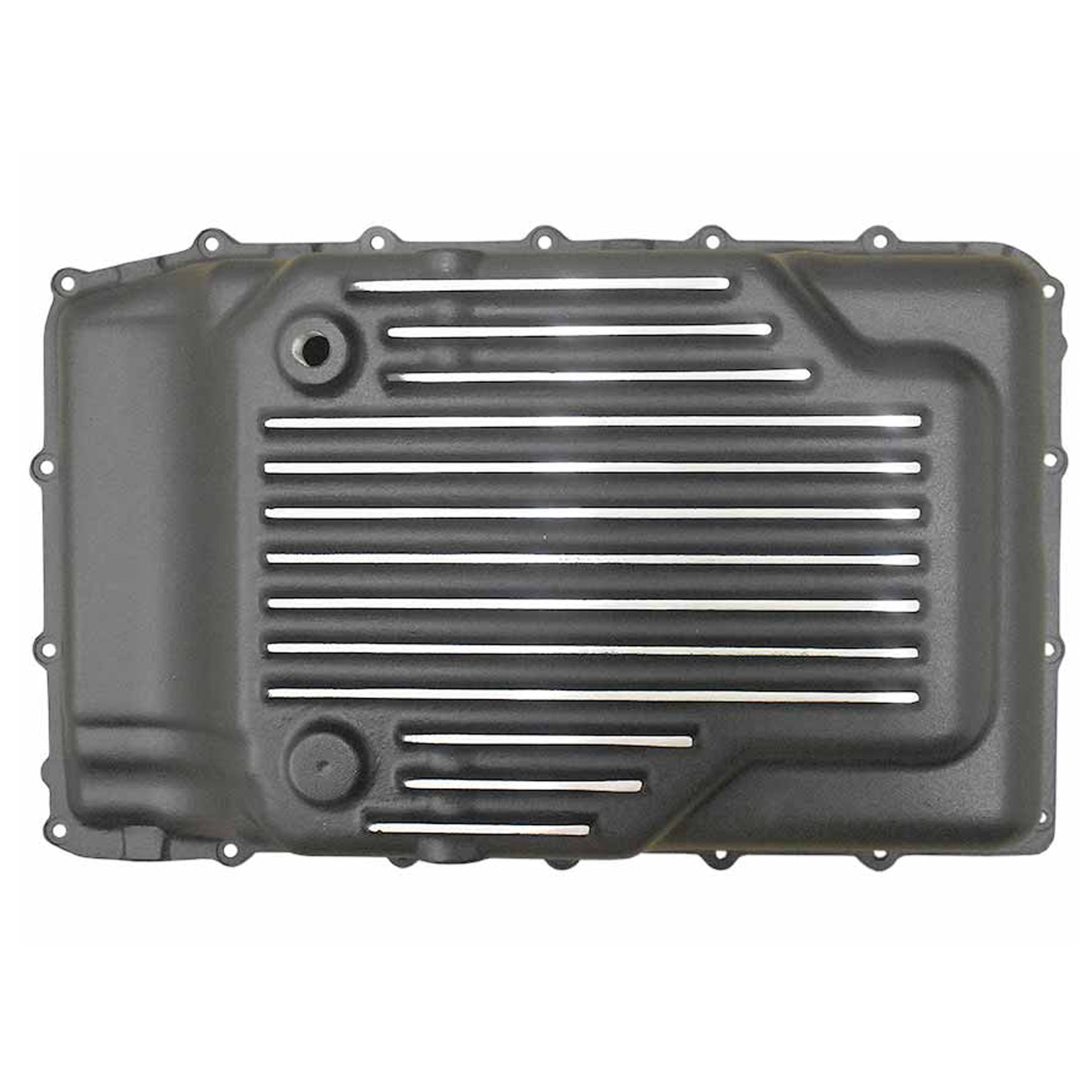

Extra capacity pan for 10R80, 10R60 transmissions on 2017 and newer Ford/Lincoln trucks and SUVs such as F-150, Ranger, Bronco, and Navigator. May also fit 2023 and newer F-250 6.8L engine trucks with the 10R100.
Pan includes custom cork type gasket and a magnetic drain plug.
Available in 2 finishes!
Volume: about 1.9 quarts over stock
Number of Bolts: 18 bolts hold the pan on the transmission case
This heavy duty, extra capacity Ford 10R80 transmission pan is designed for 2017 and newer trucks and SUVs. This transmission pan may also fit 10R60 and 10R100 transmissions.
Benefits of 10R60, 10R80 Transmission Pan:
- Drain and magnetic drain plug for easier fluid changes
- Extra capacity
- Heavy duty sand cast aluminum construction (not plastic)
- Finned to increase surface area for heat dissipation
- Thick walls and gasket flange
- PML pan fits without modification to cooling tubes or exhaust
- Includes custom cork type gasket
Installation Notes:
- Access to the stock pan may be difficult. On some vehicles, cooling tubes, exhaust pipes, frame cross members and skid plates must be removed or loosened and lowered. Video of an installation: https://youtu.be/llKEEhhZ1tg
- Thin, metal heat shielding around the edges of the stock pan may need to be trimmed or removed to fit on the pan.
- Flange does not have holes on the side for blanket that wraps around transmission (blanket may only be on 2017 models).
- Pan may not work with factory skid plates without modification to plate or spacers.
Additional Info
SKU:PML-11164-CAST
