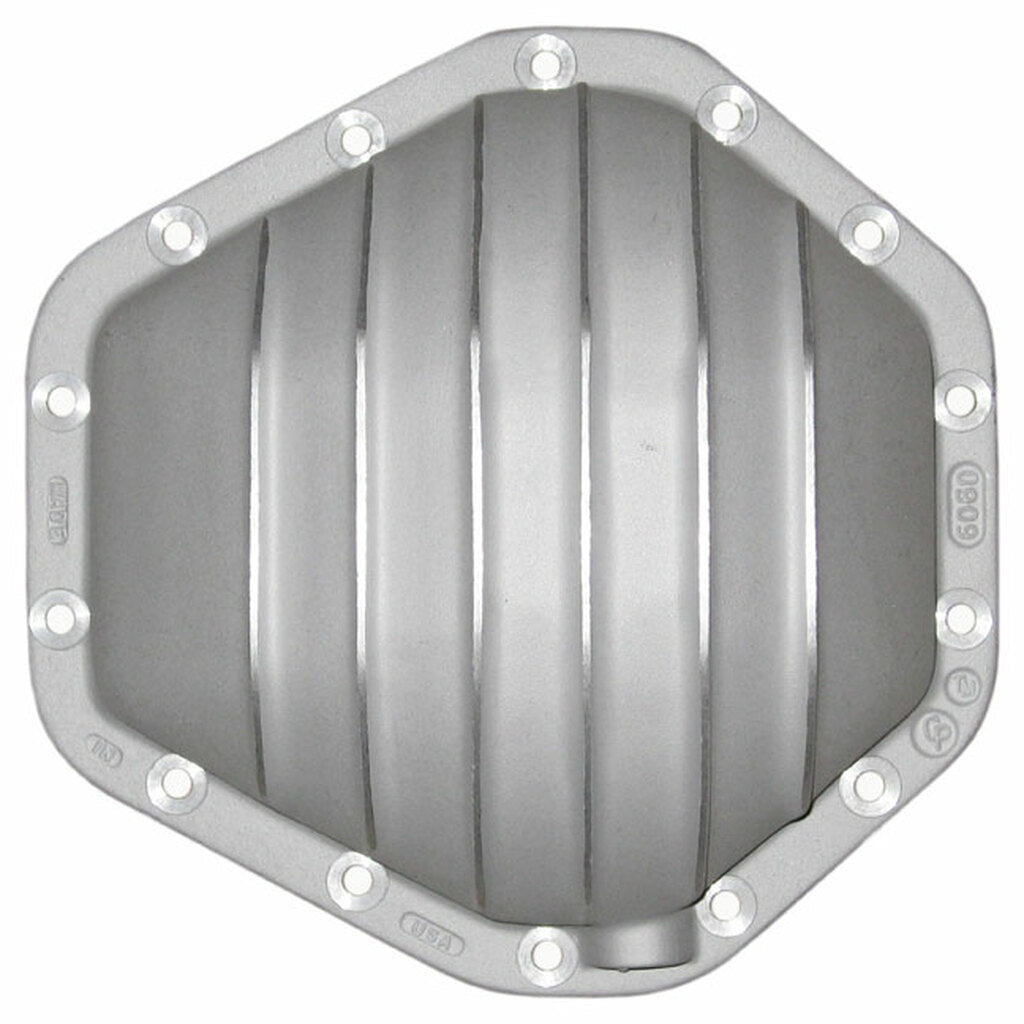

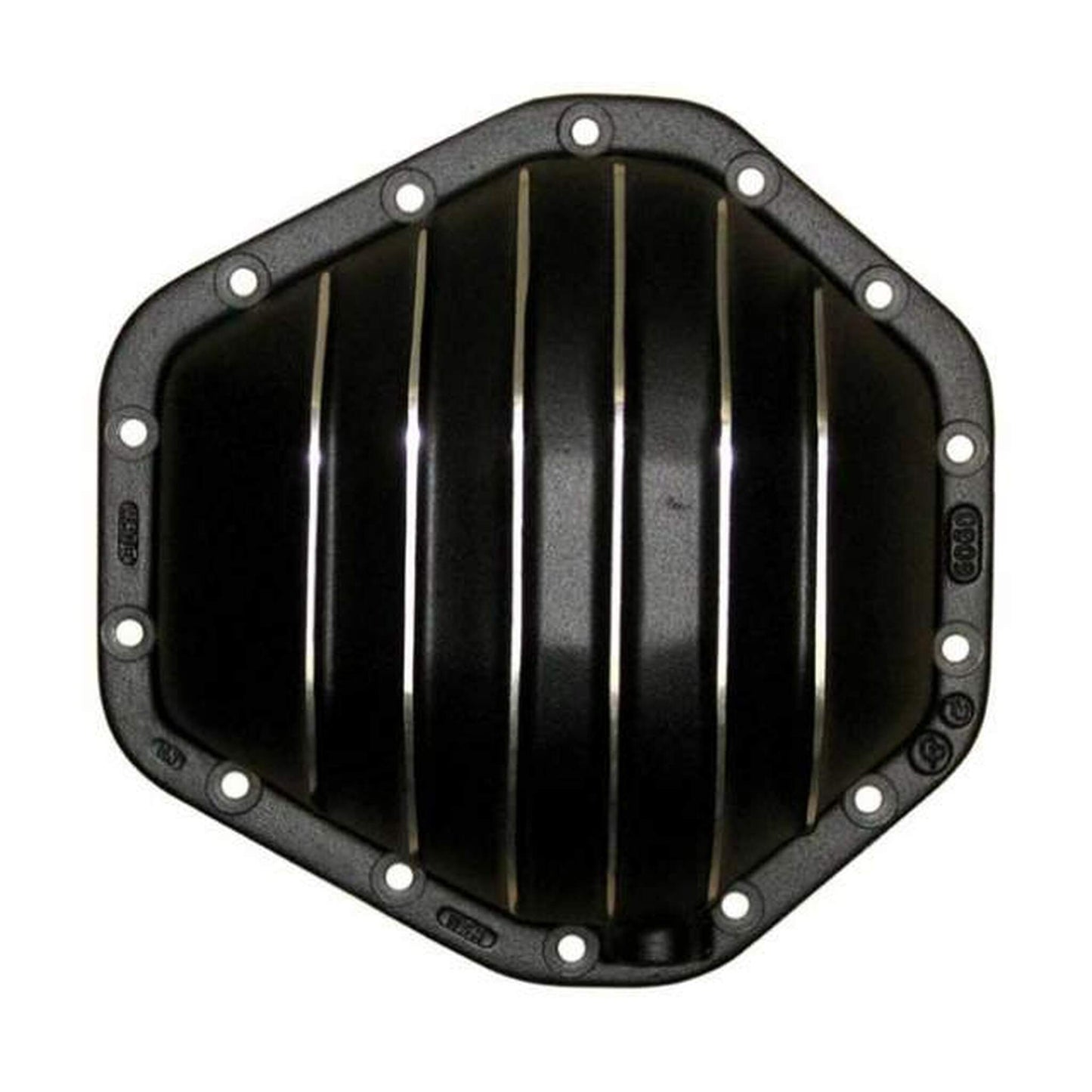

GM 10.5" Rear Differential Cover, 14 Bolt, Straight Fins

Regular price USD $255.00
Regular price USD Sale price USD $255.00
Sale Sold out
Share

Description

Volume: 1.0 quart over stock, approximately

Dimensions: Click below for dimensions.




This differential cover fits heavy duty trucks and vans such as Chevy and GMC 2500 and 3500.

PML makes two different rear end covers for the GM 10½ differential: this one and part number 9369.

Applications

Typical applications include the following. Be aware that for each model and year there may be more than one rear axle possible so please check before ordering. See also GM 14 bolt 9½ and AAM 14 bolt 11½.

¾ Ton Truck, 1973 to Current

  • C20 & K20
  • C2500 & K2500
  • Silverado 2500 & 2500HD
  • Sierra 2500 & 2500HD

1 Ton Truck, 1973 to Current

  • C30 & K30
  • C3500 & K3500
  • Silverado 3500 & Sierra 3500

¾Ton Van, 1973 to Current:

  • Vandura
  • Express
  • Savana
  • G20
  • G2500

Vehicle configurations vary. Please check dimensions, clearance and fitment carefully before ordering. There is a restocking fee for returns.

Vehicles with towing packages may have limited space for a larger differential cover. Also, the spare tire may be close to the cover. Some folks have increased the space by tying the spare tire back.

Please check and order the correct mounting bolt thread diameter. These differentials were made with 3/8-inch (.375 inch) and 8mm (.315 inch) bolts. PML offers the cover in both versions: P/N 6060-1 is for 3/8-inch bolts and P/N 6060-2 is for 8mm bolts.

Matching Front Cover for 4WD

For 4WD trucks and SUVs with the GM 8.5, 10 Bolt front end, PML offers a matching differential cover.

See the GM 8 1/2, Front 10 Bolt, Part Number 6077

The matching front cover is available in all finishes. Shown in black powder coated.



PML Differential Cover Compared to Stock





Click on image to view larger.

These images show this PML differential cover compared to the stock cover.

This image compares the depth of both PML GM 10 1/2 inch 14 bolt rear differential covers and the stock cover. Click on image to view larger in a new tab or window.


PML Differential Cover Features:

  • Increased oil capacity for cooler temperatures
  • Sand-cast aluminum with raised fins
  • 3/16-inch thick wall construction to add strength to differential housing
  • 3/8-inch thick gasket flange will not bend when bolts are tightened
  • Machined gasket surface for a secure seal using RTV or factory reusable gasket
  • Oil changes without removing the cover
  • All hardware provided, including magnetic drain plug

Additional Info

SKU:PML-6060-1-CAST
