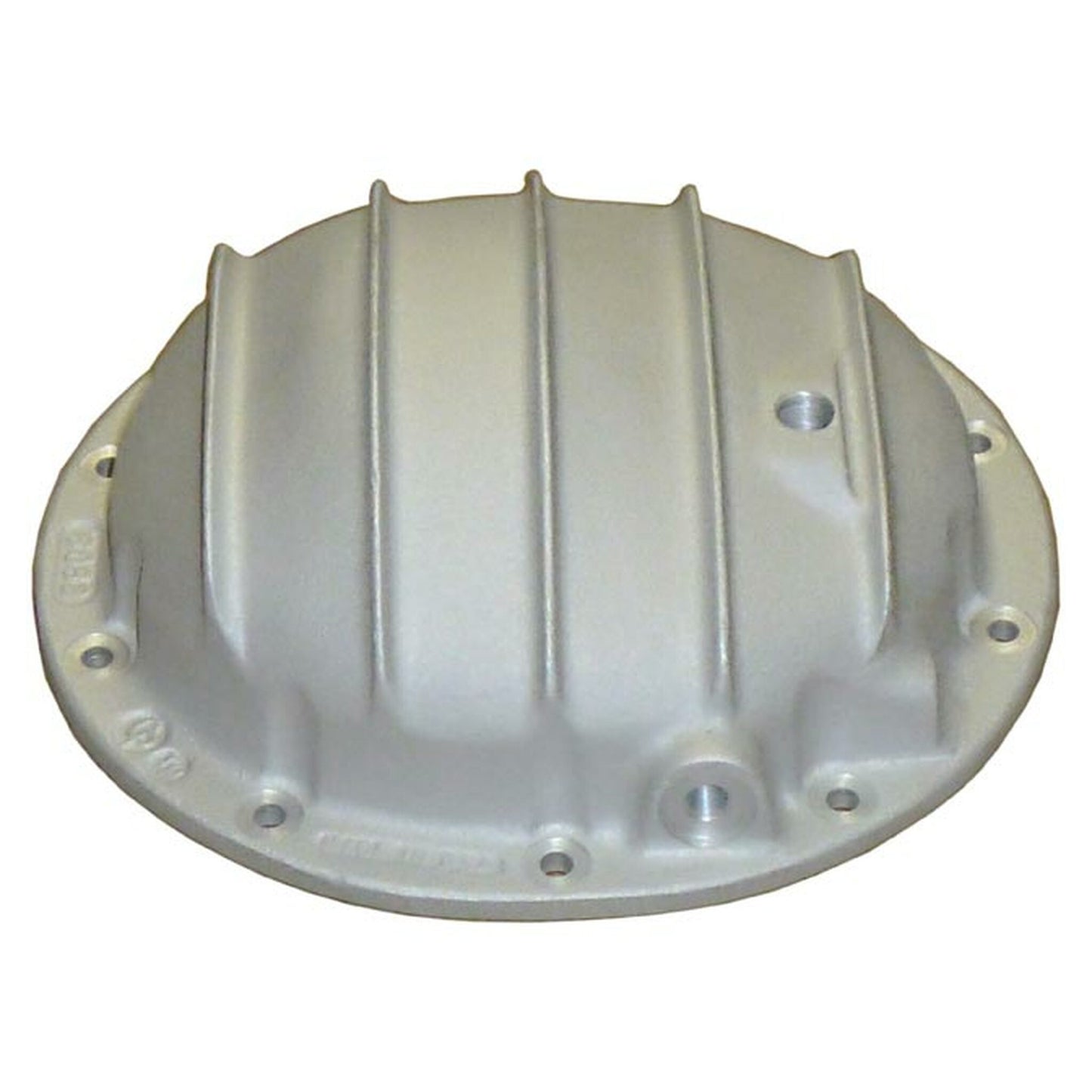

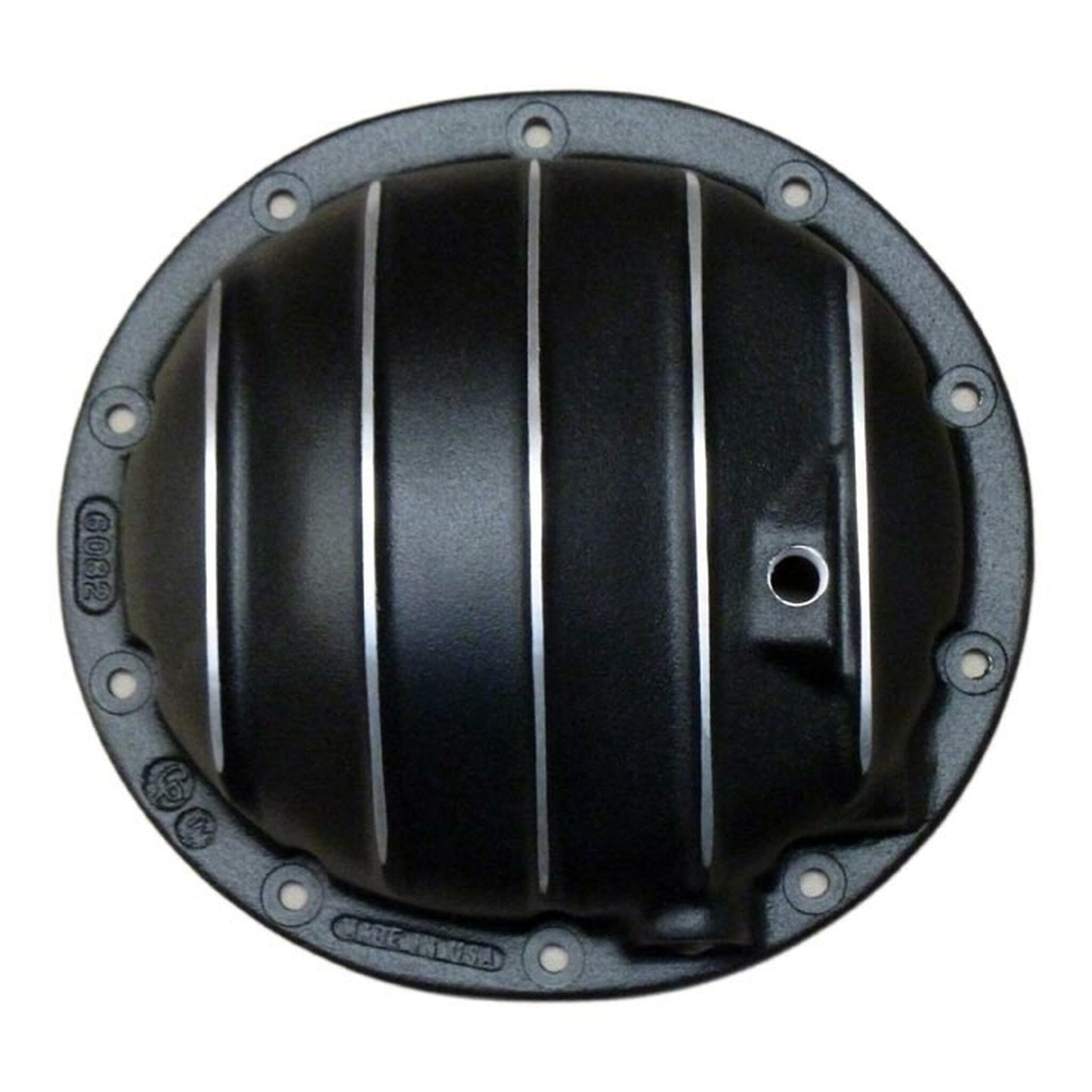

GM 8.5"/8.625" Rear Differential Cover, 10 Bolt, Vertical Fins

Regular price USD $255.00
Regular price USD Sale price USD $255.00
Sale Sold out
Share

Description

Volume: 0.75 quarts over 2005 stock

PML Nissan Differential Cover on a Titan

The PML Nissan differential cover features sand-cast aluminum construction with thick walls and gasket flange for strength and a secure seal and oversized fins and extra capacity for cooling. PML designed the casting to work with the brake line clip and bracket that attach to the differential cover so the install is an easy bolt-on replacement.

This cover fits 2004 to 2014/2015 Nissan Titan trucks and holds 0.75 quarts over 2005 & newer stock capacity to increase cooling. It is 1 1/4 inches deeper than the stock 2005 & newer cover, 2 inches deeper than the stock 2004 cover. Click below for dimensions.


2004 Titan Owners Need Clip and Bracket



2004 Titan owners will need the emergency brake cable bracket (Nissan part number 36522-8S10A) and the brake line clip (Nissan part number 24211-8S10A) from the 2005 Titan. These are included with this kit.

PML Nissan Differential Cover Does Not Fit Frontier

The same differential is found on 2005 & newer Frontiers with V6 and manual transmission and Nismo model with automatic transmission. Some Frontier owners have purchased this cover and with many modifications have installed it on a Frontier. PML does NOT recommend this. PML does not have any experience with the Frontier but we have been told that the upper half of the fins on our cover will contact the spare tire on any down travel and the emergency brake line requires modification. We truly appreciate all the help and feedback from Frontier owners who have measured, sent us pictures, and made modifications.

Temperature Sensor Port

The cover has a 1/8 NPT port already machined for a temperature sensor (a plug is included if a temp sensor is not desired). It is located in the small boss 2/3 of the way down the cover.

Level Check and Fill

The cover also has a level check/fill hole. The cover does not have a drain hole because Nissan provides a drain in the differential housing. A new set of mounting bolts are included and a magnetic plug is provided for the level check/fill hole.

The level check hole is located on the side of the cover for easy access when a sway bar is used. A level check on the front of a cover is difficult to use with some sway bars.

PML Nissan Cover with Helwig Sway Bar



Image shows this PML cover and Hellwig sway bar on a Titan.This cover will work with the Hellwig Titan sway bar (part #7669). In July 2006, Hellwig revised the design of this sway bar to allow more room for the differential cover.

Click on image to view a larger image in a separate window or tab.

PML Differential Cover Features:

  • Increased oil capacity for cooler temperatures
  • Sand-cast aluminum with raised fins
  • 3/16-inch thick wall construction to add strength to differential housing
  • 3/8-inch thick gasket flange will not bend when bolts are tightened
  • Machined gasket surface for a secure seal using RTV or factory reusable gasket
  • All hardware provided

Additional Info

SKU:PML-6082-1-CAST
